The short version

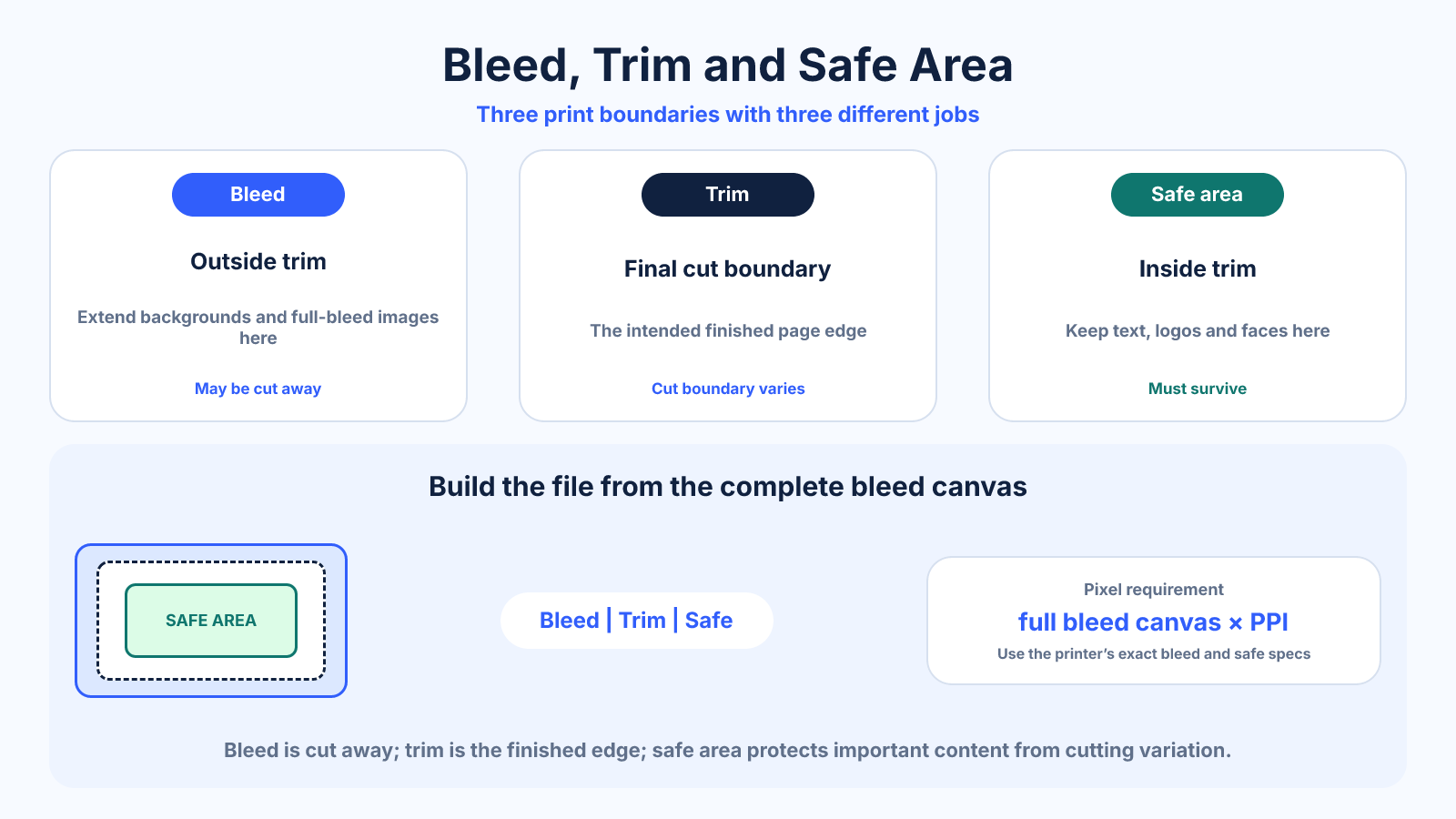

Trim is the intended finished size; bleed extends artwork beyond the cut; safe area keeps important content inside the trim. Add the printer's bleed to every specified edge, but never assume one universal value. Pixel requirements must use the complete bleed canvas at the requested density.
What matters most
- Bleed is outside final trim and is expected to be cut away.
- Safe area is inside trim and protects critical content.
- Printer templates take priority over generic measurements.
How to apply it
- Obtain final trim size and provider-specific bleed.
- Add bleed to both sides of each physical dimension.
- Extend background artwork fully through the bleed.
- Keep text, logos and faces inside the safe margin.
- Export with requested marks/settings and inspect a proof.
Reference table
| Zone | Location | Contains | Must survive? |
|---|---|---|---|
| Bleed | Outside trim | Extended background/image | No |
| Trim | Final cut boundary | Finished page edge | Boundary varies slightly |
| Safe area | Inside trim | Text, logos, faces | Yes |
| Slug/work area | Outside production page | Notes when requested | No |
Use exact dimensions and units in production notes; familiar labels can describe more than one standard.
Keep the three boundaries distinct
The document edge includes bleed; the trim line marks intended final dimensions; the safe line sits inside trim. These boundaries serve different tolerances. Treating them as one line causes either white slivers or clipped communication.
Background color and imagery should continue through bleed, while text and logos remain inside safe area. Decorative content may cross trim intentionally, but anything essential must tolerate the printer's cutting variation.
- Extend backgrounds outward.
- Pull critical content inward.
- Design for cutting tolerance.
Calculate the complete bleed canvas
If an 8×10 print requires 0.125 inch bleed on every edge, supplied dimensions become 8.25 × 10.25 inches. At 300 PPI, that is 2475 × 3075 pixels. Bleed adds twice its edge amount to each overall dimension.
Do not add 0.125 only once to width and height. If requirements are expressed in millimeters, keep units consistent or convert using 25.4 mm per inch before calculating pixels. Round according to the provider's template.
- Overall width = trim width + left bleed + right bleed.
- Overall height includes top and bottom.
- Calculate pixels from full supplied canvas.
Extend artwork without stretching subjects
For a full-bleed photograph, crop or position the image so nonessential edge content continues beyond trim. Do not stretch the entire image simply to cover bleed. When edge content is insufficient, choose a slightly deeper proportional crop or extend a simple background carefully.
Review faces, borders, signatures and product edges against safe and trim lines. Thin designed borders reveal even small cutting variation and may look uneven; consider a wider border or a different production method.
- Use proportional scale.
- Avoid critical detail in bleed.
- Proof precise borders.
Export according to the printer's workflow
Some printers want crop marks and a PDF; others explicitly reject marks and expect a raster at full bleed dimensions. Follow the named product instructions for file format, color profile, flattening and embedded fonts.
Inspect the exported page box or pixel dimensions, then order a proof when color and edge placement matter. Keep an editable master containing guides so future trim sizes can be produced without modifying the delivered derivative.
Common mistakes to avoid
- Adding a white border as bleed instead of extending artwork.
- Putting text exactly on the trim line.
- Adding bleed only once instead of to both opposite edges.
- Using a generic value despite a supplied printer template.
Continue with the right tool
Use a calculator to check the numbers against your own source and destination instead of relying on a generic preset.
Related guides
Cropping vs Resizing an Image: What Actually Changes?
Understand how cropping and resizing affect composition, aspect ratio, pixel dimensions and quality so you can choose the correct operation.
Image cropping and print preparationHow to Crop an Image to an Aspect Ratio Without Stretching
Calculate and position an exact aspect-ratio crop while preserving natural proportions, important content and enough pixels for output.
Image cropping and print preparationHow Much of an Image Will Be Lost When Cropping?
Calculate crop dimensions, removed pixels and percentage area when fitting one image aspect ratio into another without distortion.
Frequently asked questions
How much bleed should I add?
Use the printer's specification; common values exist but are not universal.
Does bleed change final print size?
No. It enlarges the supplied artwork and is cut away to the trim size.
Is safe area the same as bleed?
No. Safe area is inside trim; bleed is outside it.
Should photographs extend into bleed?
Full-bleed backgrounds and photos should extend through it so small cutting variation does not reveal white edges.
